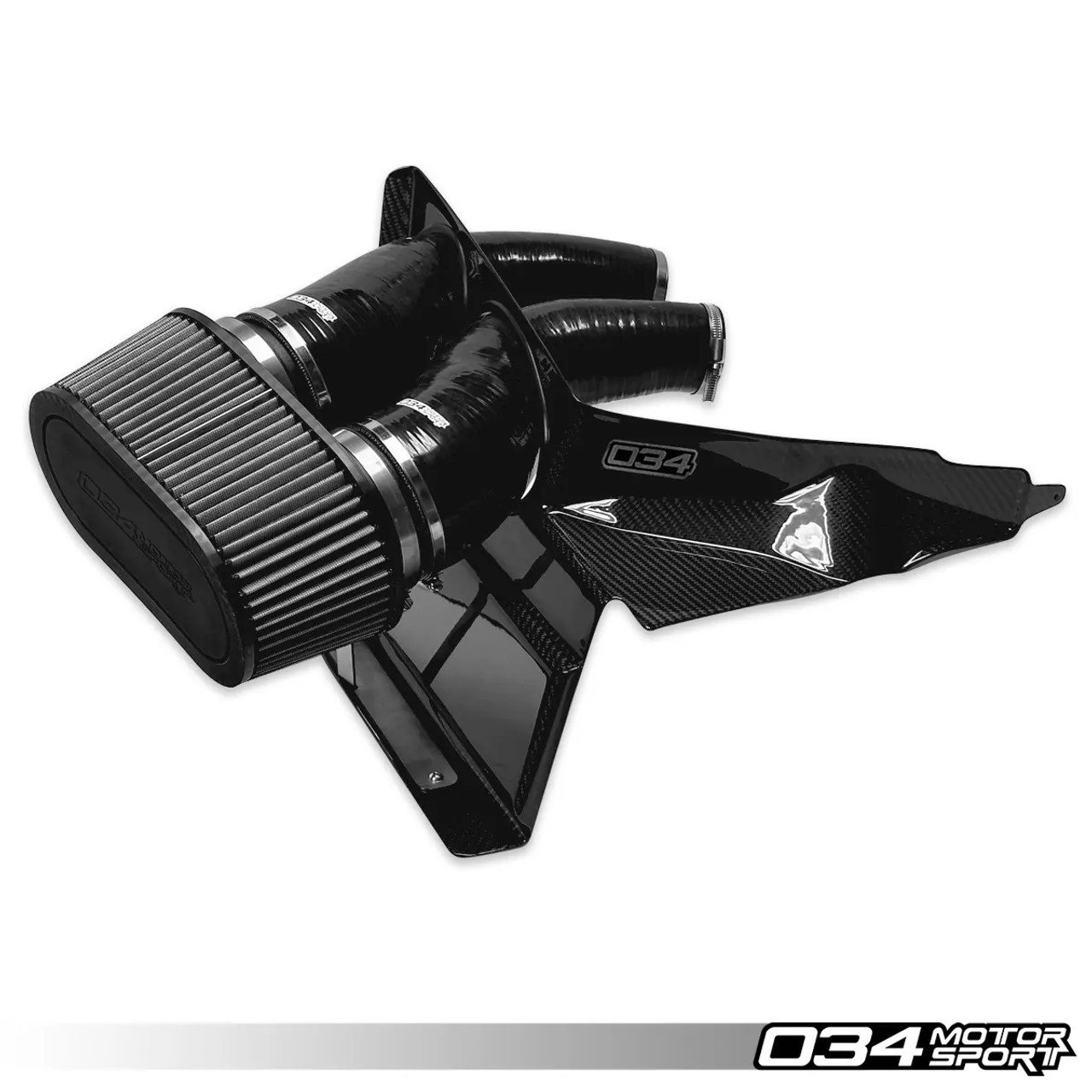

034 Motorsport S34 Carbon Fiber Intake, Audi C7/C7.5 S6/S7/RS7

PRODUCT FEATURES & DETAILS:

• Developed In-House by 034Motorsport's Engineering Team

• Fits Both Left and Right Hand Drive Configurations

• High-Quality Carbon Fiber Air Block-off Shield

• High-Gloss Epoxy Finish

• 4-Ply Gloss Black Silicone Intake Tubes

• OEM+ Fit and Finish

• No Rubbing or Excessive Movement

• Dyno-Proven Horsepower Torque Gains

• Improved Airflow Over Factory Airbox, Intake Tube, and Turbo Inlet

  • Stock Intake: 527 CFM

  • 034 Intake Hose and Filter: 816 CFM

• Enhanced Engine Induction Sounds

• Improved Throttle Response

• Large 4" Dual Flange Oval Tapered SuperDuper Filter

• Reduced Intake Air Temperature

• Securely Installs Using Factory Mounting Grommets

• Simple, Straightforward Installation Instructions

MINIMIZING UNNECESSARY FILTER SHROUDING:

034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter. The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of the air filter size, without taking into account the detrimental effects of shrouding the filter.

MAXIMIZING AIRFLOW:

034Motorsport engineers created CFD-optimized 4-Ply silicone intake tubes, which are a direct, high-performance replacement for the plastic factory accordion/sound deadening hose.

Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tubes while being mindful of space constraints. The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbochargers.

PERFORMANCE AIR FILTER:

The S34 Carbon Fiber Intake houses a high-flow dual-inlet air filter with a double-layer pleated cotton filtration medium, capable of trapping particles as small as 5 Microns. This air filter design offers increased flow through an enlarged filtration surface while ensuring superior filtration. We have tested this air filter in applications over 800HP with minimal restriction, and superior OEM quality air filtration. An added benefit is an air shroud that doesn’t move and rub on other engine compartment components like many other designs on the market do.
